물류로봇 포트폴리오

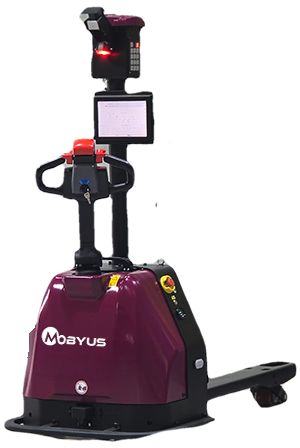

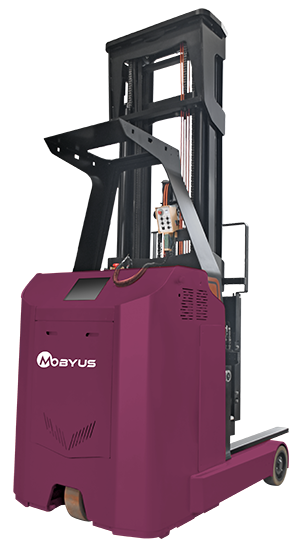

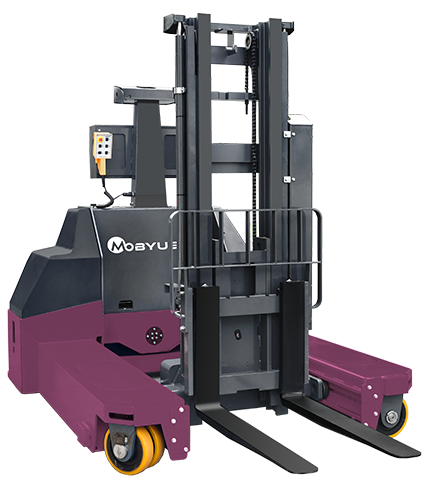

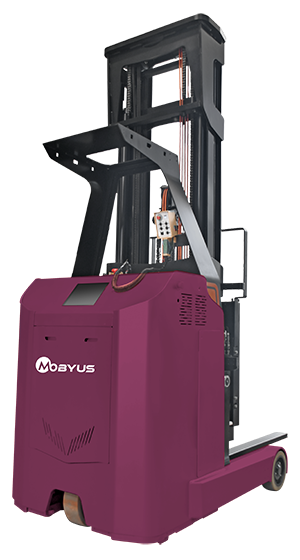

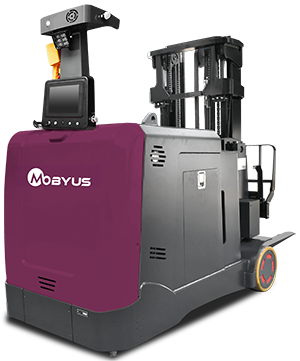

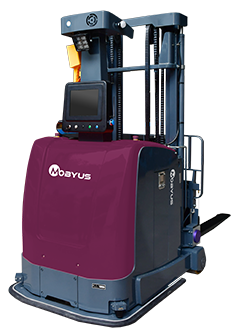

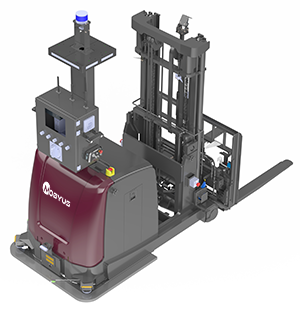

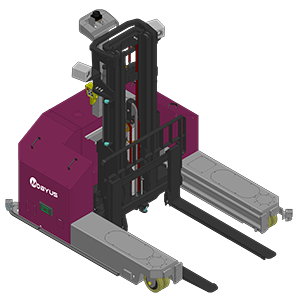

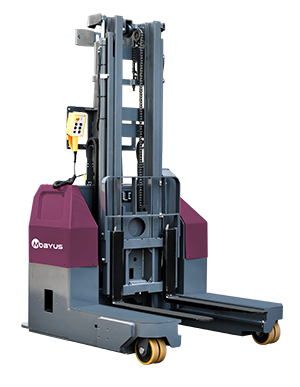

Model	Feature	Counterbalance Forklift			Reach Truck		Multi-directional Forklift			Pallet Truck
	Model	MF15CB	MF20CB	MF30CB	MF16R	MF20R	MF15Q	MF20Q	MF30Q	MF15P
	Payload (적재하중)	1,500kg	2,000kg	3,000kg	1,600kg	2,000kg	1,500kg	2,000kg	3,000kg	1,500kg
	Dimension (L×W) 전장, 폭	2,380×978mm	2,877×978mm	3,075×1,150mm	2,242×1,270mm	2,242×1,270mm	1,650×1,480mm	1,980×2,020mm	2,280×2,320mm	1,700×840mm
	Fork Size (L/E/S)	1,070/100/40	1,070/100/40	1,070/125/45	1,070/125/45	1,070/125/45	920/122/40	1,070/100/45	1,220/125/50	1,190/170/75
	Lifting Height (리프팅 높이)	2,000~4,500mm	2,000~4,500mm	2,000~4,500mm	4,600~8,000mm	4,600~8,000mm	2,500~4,500mm	2,500~4,500mm	2,500~4,500mm	120mm ±5
	Navigation Type (유도방식)	3D LiDAR SLAM	3D LiDAR SLAM	3D LiDAR SLAM	3D LiDAR SLAM	3D LiDAR SLAM	3D LiDAR SLAM	3D LiDAR SLAM	3D LiDAR SLAM	Ceiling Marker
Performance	Position Accuracy (위치 정밀도)	±10mm (with QR)	±10mm (with QR)	±10mm (with QR)	±10mm (with QR)	±10mm (with QR)	±10mm (with QR)	±10mm (with QR)	±10mm (with QR)	±200mm
	Angle Accuracy (각도 정밀도)	±1° (with QR)	±1° (with QR)	±1° (with QR)	±1° (with QR)	±1° (with QR)	±1° (with QR)	±1° (with QR)	±1° (with QR)	-
	Max Speed (최대속도)	≤1.3m/s	≤1.3m/s	≤1.3m/s	≤1.3m/s	≤1.3m/s	≤1.3m/s	≤1.3m/s	≤1.3m/s	≤1.3m/s
Battery	Battery Type (배터리 사양)	48V 150Ah (Li-ion)	48V 150Ah (Li-ion)	48V 150Ah (Li-ion)	48V 150Ah (Li-ion)	48V 150Ah (Li-ion)	48V 150Ah (Li-ion)	48V 150Ah (Li-ion)	48V 150Ah (Li-ion)	24V 60Ah (Li-ion)
Battery	Charging Method (충전방법)	Automatic / Manual	Automatic / Manual	Automatic / Manual	Automatic / Manual	Automatic / Manual	Automatic / Manual	Automatic / Manual	Automatic / Manual	Manual
Other	Wireless (통신)	Wi-Fi	Wi-Fi	Wi-Fi	Wi-Fi	Wi-Fi	Wi-Fi	Wi-Fi	Wi-Fi	Wi-Fi
Other	ACS (통신제어)	TAMS	TAMS	TAMS	TAMS	TAMS	TAMS	TAMS	TAMS	TAMS
